Mica rolls
Phlogopite Mica Roll R-5461-P-Rx
Phlogopite mica roll is a result of specially pressed mica product which is made of phlogopite mica paper and silicon resin.
The thickness ranges from 0.2mm to 0.8mm, breakdown voltage is above 10 kV/mm, tensile strength is above 160 N/15mm and temperature resistance is above 800°C.

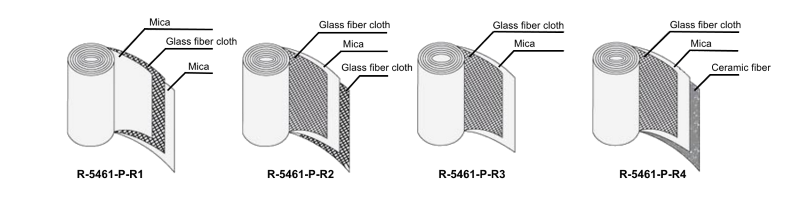

Type
- R-5461-P-R1: phlogopite mica paper with glass fiber cloth inside.
- R-5461-P-R2: phlogopite mica paper with glass fiber cloth on double sides.
- R-5461-P-R3: phlogopite mica paper with glass fiber cloth on one side.
- R-5461-P-R4: phlogopite mica paper with glass fiber cloth and ceramic fiber paper on each side.
Availability
- Roll width: 1 000 mm
- Roll Length: 20 m, 25 m, 40 m, 50 m
While every attempt has been made to verify the source of the information, no responsibility is accepted for accuracy of data.
Characteristic
| Type | Thickness [mm] |
Mica content [g/m2] |
Dielectric strength [kV] |
|---|---|---|---|
| R-5461-P-R1 R-5461-P-R2 R-5461-P-R3 R-5461-P-R4 |
0,2 | 350 | > 2 |
| 0,3 | 560 | > 3 | |
| 0,4 | 690 | > 4 | |
| 0,5 | 880 | > 5 | |
| 0,6 | 1120 | > 6 | |
| 0,7 | 1250 | > 7 | |
| 0,8 | 1400 | > 8 |
Storage:
- minimum 12 months, if stored at ambient temperature of 20ºC ± 5ºC in dry condition.
While every attempt has been made to verify the source of the information, no responsibility is accepted for accuracy of data.
