Gauge glasses gaskets

Typically, the gasket are offered in sets with gauge glass and mica shield (sample set is discussed here). They may also be provided separately.

Mica shields for transparent gauge glasses are discussed here.

The dimensions of the gasket must be matched to the dimensions of the gauge glass.

Gaskets are made from non-asbestos fibre sheets or graphite plates resistant to temperatures up to 450 °C and the pressure to 150 bar. Popular materials are asbestos-free sealing sheets type Klinger SIL C-4430, or graphite sealing plates Klinger graphite laminate type SLS or PSM.

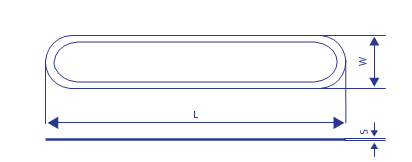

The following table presents a gaskets sizes for different sizes of gauge glasses.

Dimensions [mm]:

Glass size TYPE C TYPE A TYPE B/H TYPE TA-28
L W L W L W L W
0 85 20 95 30 95 34 - -
I 115 20 115 30 115 34 133 47
II 140 20 140 30 140 34 158 47
III 165 20 165 30 165 34 183 47
IV 190 20 190 30 190 34 208 47
V 220 20 220 30 220 34 238 47
VI 250 20 250 30 250 34 268 47
VII 280 20 280 30 280 34 298 47
VIII 310 20 320 30 320 34 338 47
IX 320 20 340 30 340 34 358 47
X 340 20 370 30 370 34 - -
XI 360 20 400 30 400 34 - -
XII 370 20 430 30 430 34 - -
XIII 400 20 460 30 460 34 - -
XIV 430 20 500 30 500 34 - -
  s = 0,3 s = 1,3 s = 1,5 s = 1,0 - 1,2


If you can not find dimension, please contact us.
