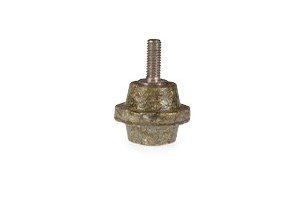

isolex-isolatori-portanti-mica-v26-dettaglio - Continental Trade

V25

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	files
314011333	V25 AISI 304 FF M8	Stainless steel	F-F	download
314012223	V25 AISI 304 MM M6x16mm	Stainless steel	M-M	download
314012333	V25 AISI 304 MM M8x17mm	Stainless steel	M-M	download
314012333L	V25 AISI 304 MM M8x32mm	Stainless steel	M-M	download
314013223	V25 AISI 304 FM M6 +M6x16 mm	Stainless steel	F-M	download

height [mm]	diameter [mm]	creepage distance [mm]	breakdown voltage [kV]	bending resistance [kN]
25	30	32	12	2,20

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

V18 (MV478)

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 18 25 24 10 0,33 code description material finishing files 314A11003 V18 AISI 304 FF M4 Stainless steel F-F download 314A11113 V18 AISI 304 FF M5 Stainless steel F-F download 314A11223 V18 AISI 304 FF M6 Stainless steel F-F download 314A13003 V18 AISI 304 FM M4 +M4x18 mm Stainless steel F-M download 314A13113 V18 AISI 304 FM M5 +M5x18 mm Stainless steel F-M download 314A13223 V18 AISI 304 FM M6 +M6x18 mm Stainless steel F-M download

V26

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 26 30 32 12 2,20 code description material finishing files 314711223 V26 AISI 304 FF M6 Stainless steel F-F download 314711333 V26 AISI 304 FF M8 Stainless steel F-F download
