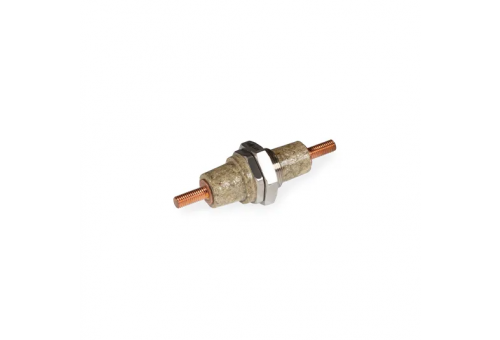

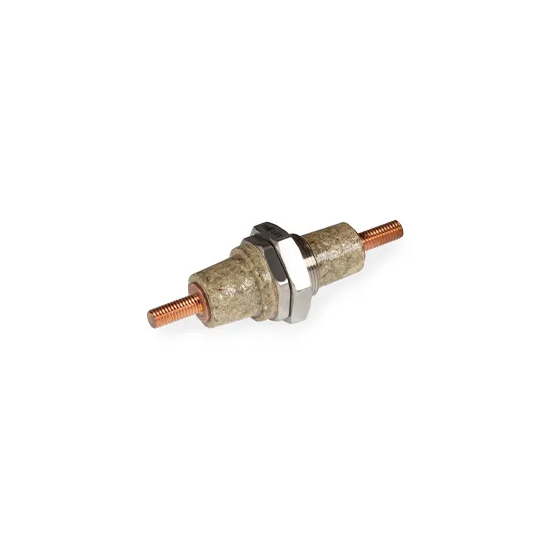

Series MV1

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	files
315211113	Isol.pass.MV1-M05-Cu - 100A spec.	Copper	M-M	download

max current [A]	breakdown voltage [kV]	hexagonal[mm]	internal creepage distance [mm]	internal air distance [mm]	external creepage distance [mm]	external air distance [mm]	Maximum torque on insert threads [Nm]
100	10	22	16	15	22	22	30

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

Series MV2

code description material finishing files 315112333 Isol.pass.MV2-M08-Cu - 200A spec. Copper M-M download max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 200 10 26 22 21 29 25 50

Series MV3

max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 400 10 26 39 36 51 51 60 code description material finishig files 315331553 Isol.pass.MV3-M12-Cu - 400A spec. Copper M-M download

Downloadables

Technical data
