  6. Series 4
Our offer
Our offer
Add to clipboard

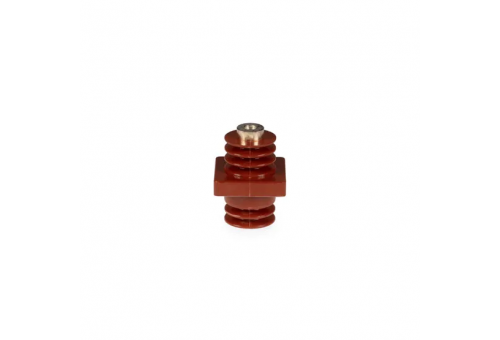

Zrzut ekranu (6) - Continental Trade

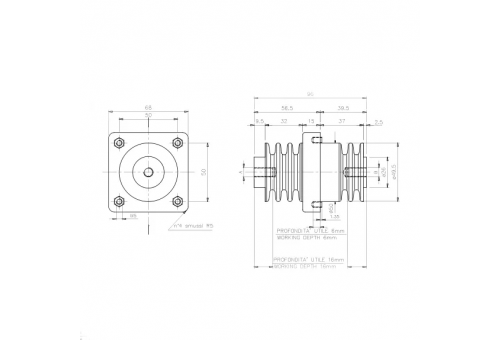

Zrzut ekranu (59) - Continental Trade

Series 4

Inquire about a product
Product description Technical data Video

products

code description material finishing indoor/outdoor current [A] weight files
312106101 Isol.pass.4HH-M 8/096 B-Cu Copper F-F Outdoor 800 635 download
312112701 Isol.pass.4HH-M 10/096 B-Cu Copper F-F Indoor 800 635 download
312112711 Isol.pass.4HH-M 12/096 B-Cu Copper F-F Indoor 800 635 download
312122400 Isol.pass.4HH-M 12-16/112 B-Cu Copper F-F Indoor 800 650 download
312109301 Isol.pass.4HH-M14/096 B-Cu Copper F-F Indoor 800 625 download
312122900 Isol.pass.4HH-M16/166 B-Cu Copper F-F Indoor 800 950 download
312122800 Isol.pass.4HS-M12/141 B-Cu Copper Female-Flat terminal
 		 Outdoor 800 815 download
312101300 Isol.pass.4SH-11M12/130 B-Cu Copper Flat terminal-Female Indoor 800 710 download
312101300s Isol.pass.4SH-11M12/130 B-Cu Copper Flat terminal-Female Indoor 800 710 download
312125200 Isol.pass.4SH-13M12/135 B-Cu Copper Flat terminal-Female Indoor 800 710 download
312008100 Isol.pass.4SS-11/170 B-Cu Copper Flat terminal-Flat terminal Indoor 800 840 download
312008103 Isol.pass.4SS-11/170 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download
312119300 Isol.pass.4SS-11/170-Fori 13 B-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download
312008403 Isol.pass.4SS-11/180 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 840 download
312008300 Isol.pass.4SS-11/235 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1140 download
312008200 Isol.pass.4SS-11/240 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1140 download
312008203 Isol.pass.4SS-11/240 E-Cu Copper Flat terminal-Flat terminal Outdoor 800 1170 download
312123600 Isol.pass.4SS-11/240-4fori Φ11 B-Cu Copper Flat terminal-Flat terminal Indoor 800 1170 download
max current [A] breakdown voltage [kV] hexagonal[mm] hexagonal[mm] hexagonal[mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm]
800 14 50x50 80 48 114 60 50
return
Previous product Next product
Contact form
Series 3
Series 3
Series 3
max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 400 14 30x30 95 46 91 45 60 code description material finishing indoor/outdoor current [A] weight files 312108303 Isol.pass.3FF-M10/153 E-Cu Copper M-M Outdoor 400 320 download 312113303 Isol.pass.3FF-M12/134 E-Cu Copper M-M Outdoor 400 290 download 312101601 Isol.pass.3FF-M12/148 B-Cu Copper M-M Indoor 400 291 download 312101601s Isol.pass.3FF-M12/148 B-Cu Copper M-M Indoor 400 291 download 312101603 Isol.pass.3FF-M12/148 E-Cu Copper M-M Outdoor 400 292 download 312101603s Isol.pass.3FF-M12/148 E-Cu Copper M-M Outdoor 400 292 download 312104703 Isol.pass.3HH-M8/084 E-Cu Copper F-F Outdoor 400 240 download 312101060 Isol.pass.3HH-M8/084 E-Ot Brass F-F Outdoor 250 240 download 312107913 Isol.pass.3HS-M10-9/111 E-Cu Copper Female-Flat terminal Outdoor 400 280 download 312107203 Isol.pass.3HS-M8-7/121 E-Cu Copper Female-Flat terminal Outdoor 400 290 download 312124803 Isol.pass.3HS-M8-9/104 E-Cu Copper Female-Flat terminal Outdoor 400 250 download 312107903 Isol.pass.3HS-M8-9/111 E-Cu Copper Female-Flat terminal Outdoor 400 280 download 312107913 Isol.pass.3SH-M10-9/111 E-Cu Copper Flat terminal-Female Outdoor 400 280 download 312910006 Isol.pass.3SS-9/138 E-Cu Copper Flat terminal-Flat terminal Outdoor 400 220 download
Series 5
Series 5
Series 5
max current [A] breakdown voltage [kV] hexagonal[mm] internal creepage distance [mm] internal air distance [mm] external creepage distance [mm] external air distance [mm] Maximum torque on insert threads [Nm] 1000 14 61x61 77 41 142 70 50 code description material finishing indoor/outdoor current [A] weight files 312900403 Isol.pass.5HH-M10/096 E-Cu Copper F-F Outdoor 1000 1470 download 312900200 Isol.pass.5HH-M12/096 B-Cu Copper F-F Indoor 1000 1125 download 312900203 Isol.pass.5HH-M12/096 E-Cu Copper F-F Outdoor 1000 1470 download 312900300 Isol.pass.5HH-M16/096 B-Cu Copper F-F Indoor 1000 1125 download 312008803 Isol.pass.5SS-13/179 E-Cu Copper Flat terminal-Flat terminal Outdoor 1000 1470 download 312008600 Isol.pass.5SS-13-14/164 B-Cu Copper Flat terminal-Flat terminal Indoor 1000 1470 download 312008603 Isol.pass.5SS-13-14/164 E-Cu Copper Flat terminal-Flat terminal Outdoor 1000 1470 download 312114600 Isol.pass.5SS-14/186 B-Cu Copper Flat terminal-Flat terminal Indoor 1000 2110 download 312910003 Isol.pass.5SS-14/186 E-Cu Copper Flat terminal-Flat terminal Outdoor 1000 1800 download
