isolex-isolatori-portanti-mica-v60-dettaglio - Continental Trade

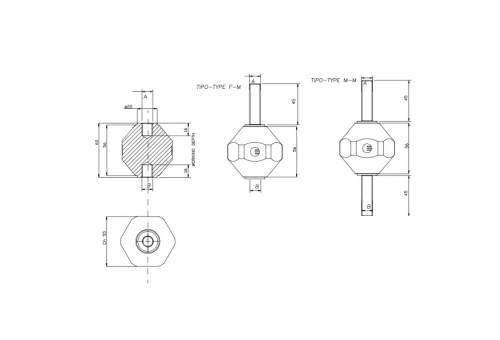

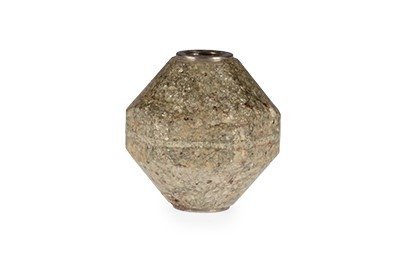

V60 (MV65)

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	files
314511443	V60 AISI 304 FF M10	Stainless steel	F-F	download
314511663	V60 AISI 304 FF M14	Stainless steel	F-F	download
314511773	V60 AISI 304 FF M16	Stainless steel	F-F	download
314512663S	V60 AISI 304 MM M14x39 +M14x30 mm	Stainless steel	M-M	download
314513773	V60 AISI 304 FM M16 +M16x45 mm	Stainless steel	F-M	download
314514773	V60 AISI 304 FF 5/8"	Stainless steel	F-F	download
314516773	V60 AISI 304 FM 5/8"x30 mm	Stainless steel	F-M	download

height [mm]	diameter [mm]	creepage distance [mm]	breakdown voltage [kV]	bending resistance [kN]
60	60	75	23	7,00

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

V50 MV52

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 50 52 65 22 4,50 code description material finishing files 314411333 V50 AISI 304 FF M08 Stainless steel F-F download 314411443 V50 AISI 304 FF M10 Stainless steel F-F download 314411553 V50 AISI 304 FF M12 Stainless steel F-F download 314413443 V50 AISI 304 FM M10 +M10x35 mm Stainless steel F-M download 314414553 V50 AISI 304 FF UNC 1/2" Stainless steel F-F download

V60HC

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 60 60 160 27 4,00 code description material finishing files 314521443 V60 HC AISI 304 FF M10 Stainless steel F-F download 314521553 V60 HC AISI 304 FF M12 Stainless steel F-F download 314521773 V60 HC AISI 304 FF M16 Stainless steel F-F download

V80 (MV261)

height [mm] height [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 80 80 99 33 14,00 code description material finishing file 314J11773 V80 AISI 304 FF M16 Stainless steel F-F download 314J11AA3 V80 AISI 304 FF M18 Stainless steel F-F download
