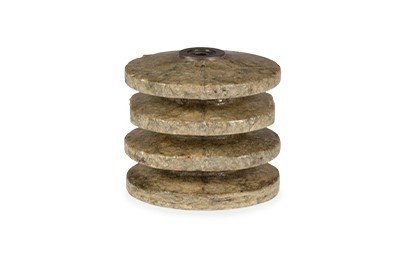

V60HC

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	files
314521443	V60 HC AISI 304 FF M10	Stainless steel	F-F	download
314521553	V60 HC AISI 304 FF M12	Stainless steel	F-F	download
314521773	V60 HC AISI 304 FF M16	Stainless steel	F-F	download

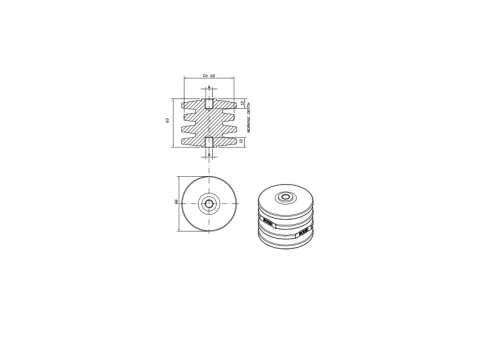

height [mm]	diameter [mm]	creepage distance [mm]	breakdown voltage [kV]	bending resistance [kN]
60	60	160	27	4,00

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

V50 MV52

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 50 52 65 22 4,50 code description material finishing files 314411333 V50 AISI 304 FF M08 Stainless steel F-F download 314411443 V50 AISI 304 FF M10 Stainless steel F-F download 314411553 V50 AISI 304 FF M12 Stainless steel F-F download 314413443 V50 AISI 304 FM M10 +M10x35 mm Stainless steel F-M download 314414553 V50 AISI 304 FF UNC 1/2" Stainless steel F-F download

V60 (MV65)

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 60 60 75 23 7,00 code description material finishing files 314511443 V60 AISI 304 FF M10 Stainless steel F-F download 314511663 V60 AISI 304 FF M14 Stainless steel F-F download 314511773 V60 AISI 304 FF M16 Stainless steel F-F download 314512663S V60 AISI 304 MM M14x39 +M14x30 mm Stainless steel M-M download 314513773 V60 AISI 304 FM M16 +M16x45 mm Stainless steel F-M download 314514773 V60 AISI 304 FF 5/8" Stainless steel F-F download 314516773 V60 AISI 304 FM 5/8"x30 mm Stainless steel F-M download

Downloadables

Technical data
