Type 586

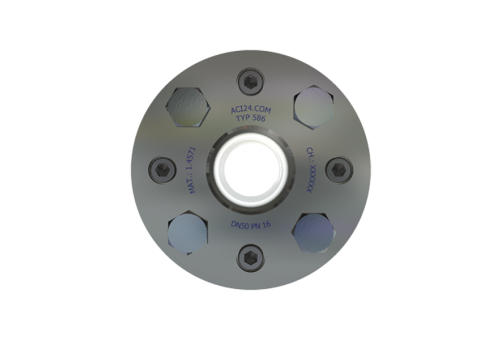

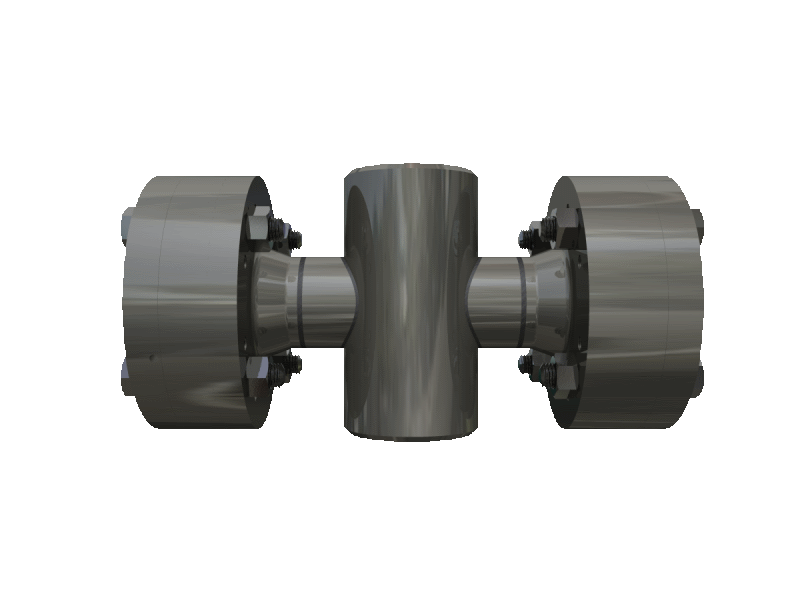

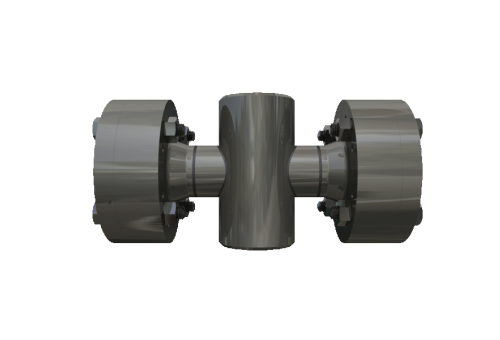

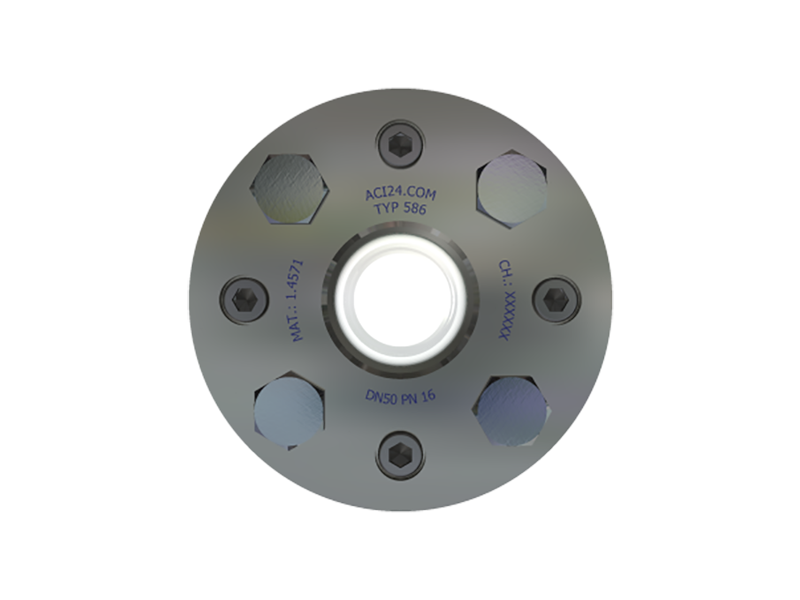

Flow sight glasses type 586 with double glazing

SHORT DESCRIPTION - SAFETY SIGHT GLASS WITH DOUBLE GLAZING

The ACI flow sight glass with safety double glazing type 586 has the same sealing in the force shunt as our type 581, but is equipped with two glass panes per sight opening.

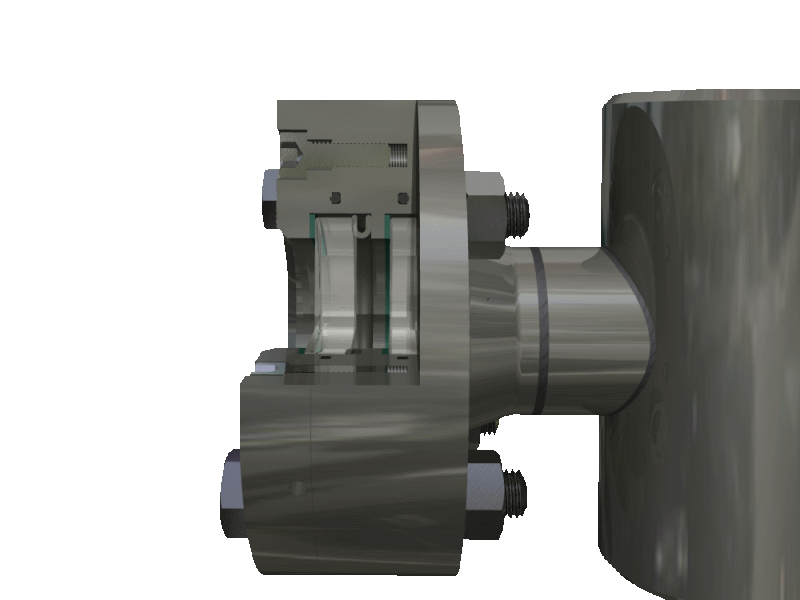

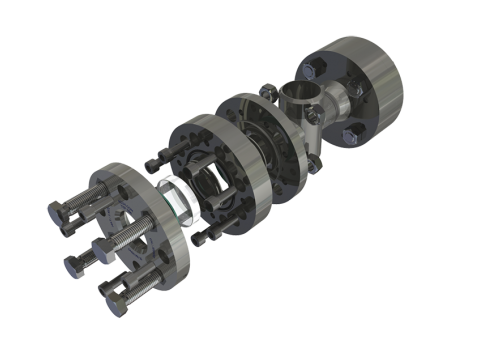

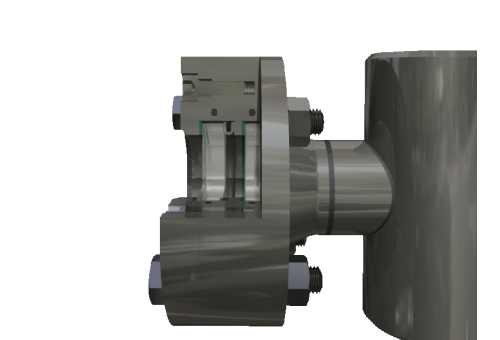

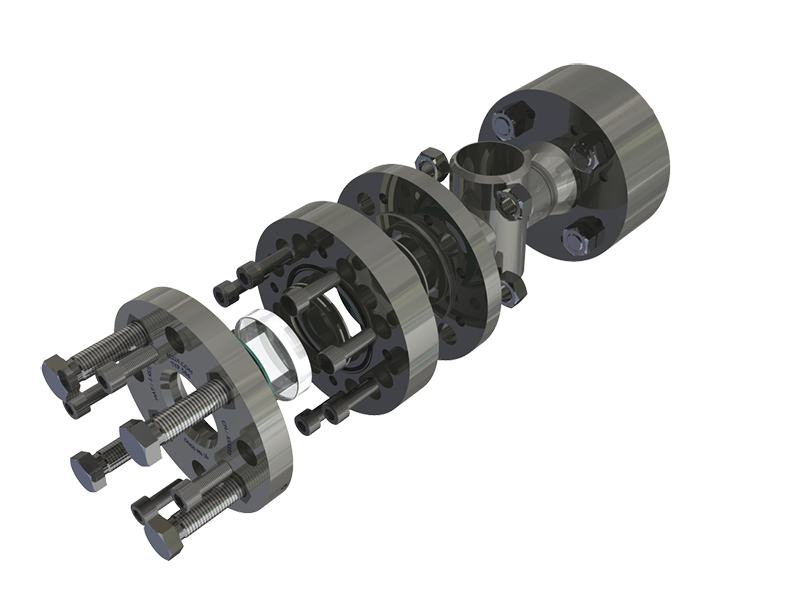

The viewing panels made of borosilicate glass according to DIN 7080 are also sealed by PTFE-coated corrugated ring seals according to DIN 28121 for the flow-through sight glass type 586. The socket is screwed in such a way that the metal parts touch each other on the entire circumference and thus provide the best possible protection for the glass pane. In addition, the glass sockets have O-ring seals to prevent leakage in the event of glass breakage. Type 586 thus significantly increases operational safety, as no process medium can escape from the valve even if the inner glass pane fails.

If the relatively low maximum operating temperature of the PTFE-enveloped gasket of up to 200°C is not sufficient for your application, it is possible to use graphite composite gaskets instead of the corrugated ring gasket based on the standard with our flow sight glass type 586, so that the maximum temperature range of the glass pane of 280°C can be fully utilised. For an additionally extended temperature range, we also offer sight glass panels made of quartz or sapphire glass, so that type 585 can meet any challenge.

You can select the body material according to your requirements from our extensive range of steel and stainless steel alloys with pressure equipment approval. In addition to commercially available alloys such as P265GH or 1.4571, we can also supply special materials such as Hastelloy or other nickel-based alloys to meet the highest demands.

Contact our capable sales team to find the perfect solution for you! You can watch a product video or read on for tecnical details!
