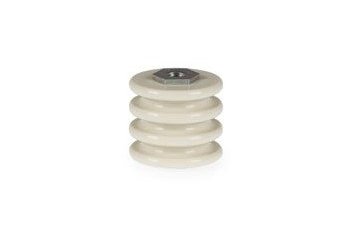

isolatore-portante-ceramica-g35-isolex-dettaglio (1) - Continental Trade

G35/10

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	files
312025300	G35 Fe M6	Zinc electroplated steel	F-F	download
312023700	G35 Fe M8	Zinc electroplated steel	F-F	download
312112200	G35 Fe M8+M8x18	Zinc electroplated steel	F-M	download
312025500	G35 Fe M10	Zinc electroplated steel	F-F	download
312023604	G35 Inox M8	Stainless steeel	F-F	download
312025200	G35 Ot M6	Nickelplated brass	F-F	download
312023600	G35 Ot M8	Nickelplated brass	F-F	download
312025400	G35 Ot M10	Nickelplated brass	F-F	download

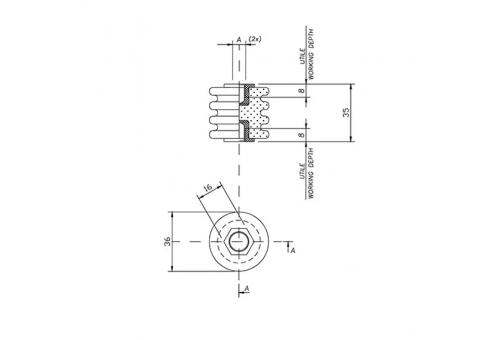

height [mm]	diameter [mm]	creepage distance [mm]	breakdown voltage [kV]	bending resistance [kN]
35	36	60	16	1,60

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

G35

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 35 36 65 17 1,60 code description material finishing files 312025300 G35 Fe M6 Zinc electroplated steel F-F download 312023700 G35 Fe M8 Zinc electroplated steel F-F download 312112200 G35 Fe M8+M8x18 Zinc electroplated steel F-M download 312025500 G35 Fe M10 Zinc electroplated steel F-F download 312023604 G35 Inox M8 Stainless steel F-F download 312025200 G35 Ot M6 Nickelplated brass F-F download 312023600 G35 Ot M8 Nickelplated brass F-F download 312025400 G35 Ot M10 Nickelplated brass F-F download

G40

height [mm] diameter [mm] creepage distance [mm] creepage distance [mm] creepage distance [mm] 40 50 77 23 1,60 code description material finishing 312026600 G40 Ot M8 Nickel-plated brass F-F 312104010 G40 Fe M8 Zinc-plated steel F-F 312104020 G40 Ot M6 Nickel-plated brass F-F 312104030 G40 Fe M6 Zinc-plated steel F-F
