isolex-isolatori-portanti-mica-v100-dettaglio - Continental Trade

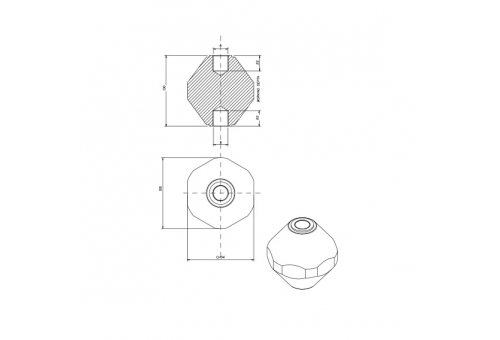

V100 (MV178)

Inquire about a product

Product description Technical data Video

products

code	description	material	finishing	files
314611773	V100 AISI 304 FFM16	Stainless steel	F-F	download
314611883	V100 AISI 304 FFM22	Stainless steel	F-F	download
314611883_SX	V100 AISI 304 FFM22-Left handed threads	Stainless steel	F-F	download

height [mm]	diameter [mm]	creepage distance [mm]	breakdown voltage [kV]	bending resistance [kN]
100	10	120	35	18,00

return

Contact form

Individual person

Company

First name and last name

COMPANY NAME

NIP [tax identification number]

Country

POST CODE

City

STREET AND HOME NUMBER

Phone

e-mail

MESSAGE

Please send me the information bulletin

I consent to the processing of my personal data in accordance with the Act on Personal Data Protection and Regulation 2016/679. The provision of data is voluntary but necessary for processing the request. I have been informed that I have the right to access my data, to rectify them, and to demand that their processing be discontinued. Continental Trade is acting as the data controller. More information about personal data protection can be found in privacy policy. By clicking SEND you accept all the above conditions

V112 (MV86)

height [mm] diameter [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 60 112 150 35 7,00 code description material finishing files 314531773 V112 AISI 304 FF M16 Stainless steel F-F download

V80 (MV261)

height [mm] height [mm] creepage distance [mm] breakdown voltage [kV] bending resistance [kN] 80 80 99 33 14,00 code description material finishing file 314J11773 V80 AISI 304 FF M16 Stainless steel F-F download 314J11AA3 V80 AISI 304 FF M18 Stainless steel F-F download
