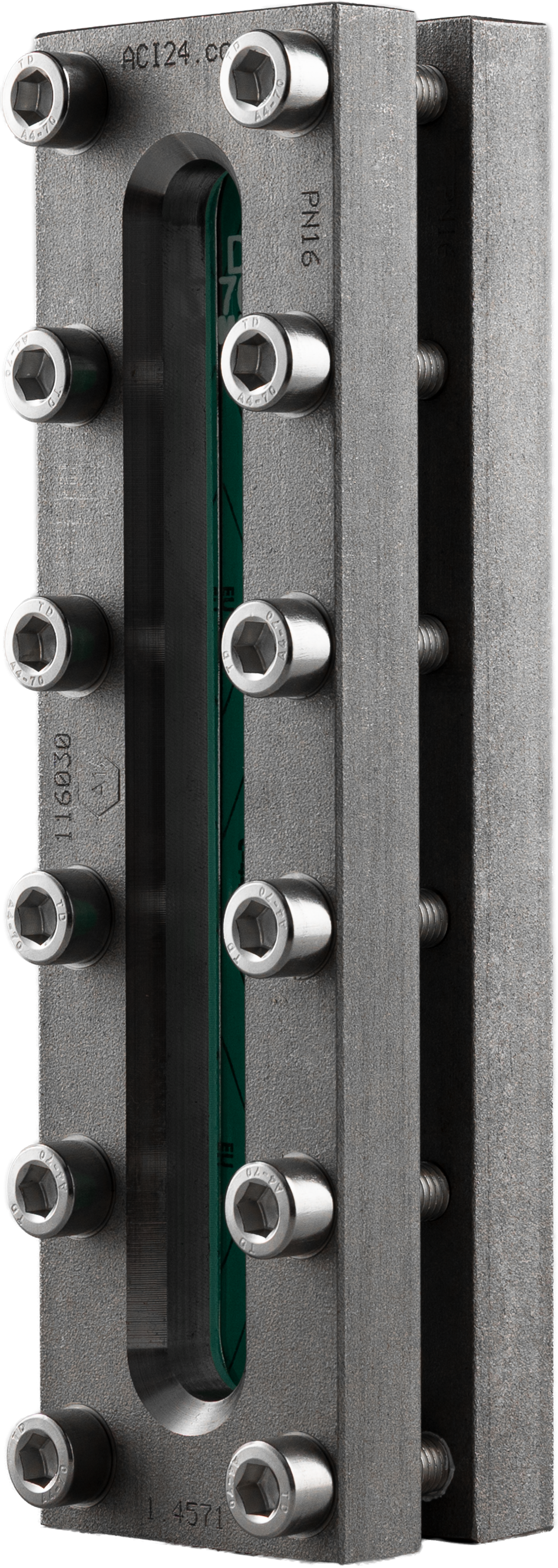

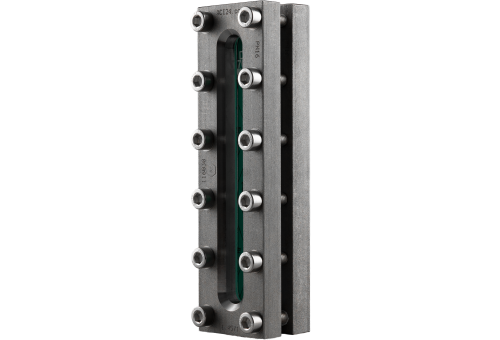

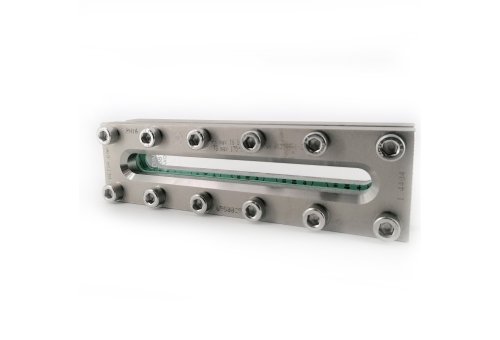

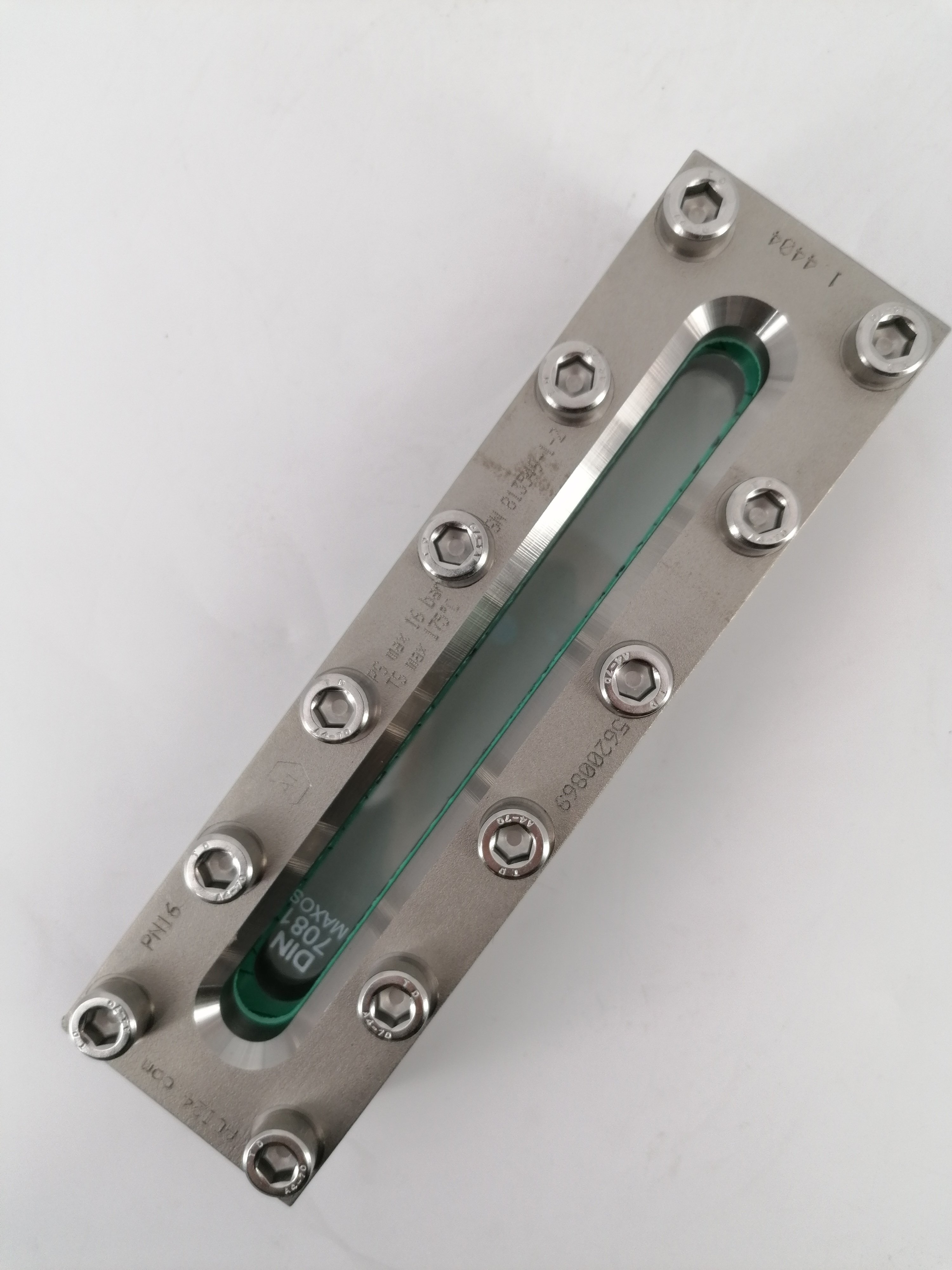

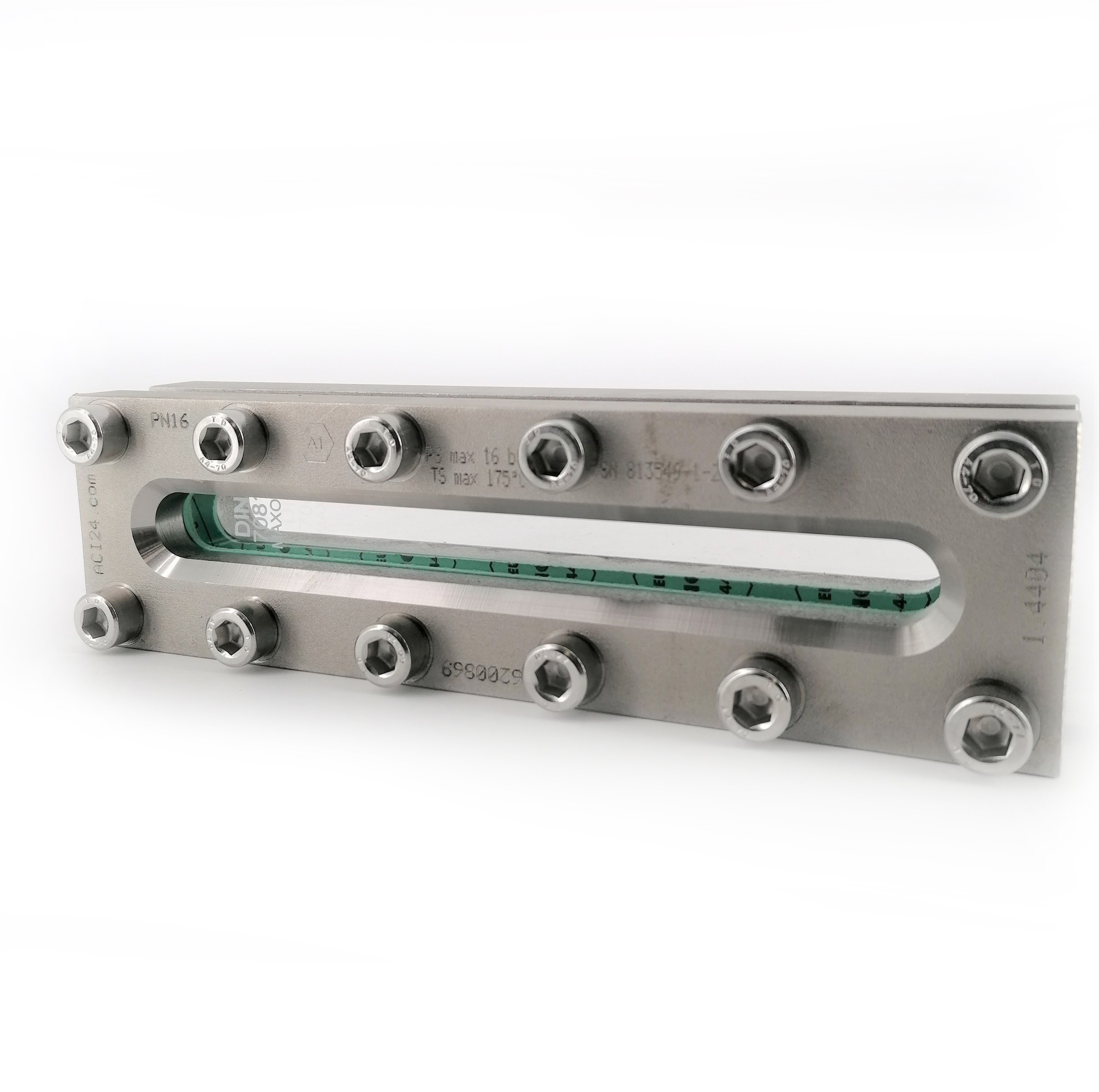

Longitudinal sight glass fitting type 330 PN 16/40 For welding in or on

Nuts Stud bolts Cover flange Glass cushion Sight glass Gasket Base flange Our round sight glasses type 320 are welded on or in a container wall to allow for observation or illumination of the inside of the container. A sight glass made of chemically highly resistant borosilicate glass DIN7080 is clamped between two high-quality stainless steel flanges and proven quality seals.  Beyond the definitions of DIN 28120, we also offer type 320 in special sizes of DN 250 and DN 300. These sizes, not specified in the standard, have also been constructed in accordance with DIN 28120.  Our sight glasses type 320 are made from high-quality stainless steel 1.4571 (316Ti), which our customers have appreciated for years. The glass material used is the tried-and-tested borosilicate glass according to DIN 7080 (or according to customer specifications).  The sealing of the fitting is done with flat seals tailored to your needs from a comprehensive range of materials. In addition to the common fiber seals, this also offers more demanding materials such as PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400, and many other brand seals. If the maximum operating temperature of borosilicate glass DIN 7080 does not meet your requirements, or if the process conditions pose a problem even for the highly resistant borosilicate glass, a mica protection disk specially adapted for the fitting offers additional protection against temperature and steam. FEP or Halar® coatings additionally protect the borosilicate glass from aggressive chemicals or alkalis. Like other sight glass fittings, type 320 can be equipped upon request with sight glass wiper type SGW and SWII, spray devices SVI, or lights. Cross-sectiondrawing Dimensions DN 25 40 50 80 100 125 150 200 250² 300² Da [mm] 115 150 165 200 220 250 285 340 395 445 Di [mm] 48 65 80 100 125 150 175 225 280 325 h1 [mm] 16 16 16 20 22 25 30 35 40 45 h2 [mm] 25 30 30 30 30 30 36 36 40 45 Glass-Ø [mm] 63 80 100 125 150 175 200 250 300 355 s (PN10) [mm] 10 10 12 15 20 20 25 30 45 45 s (PN16) [mm] 10 12 15 20 25 25 30 - - - Weight (PN 10) [kg] - 5,4 5,9 9,6 11,1 14,3 21,9 30,7 44,7 59,2 Weight (PN 16) [kg] 2,8 5,4 6,0 9,7 11,3 14,6 22,4 - - - 2) Similar to DIN 28120

Screws Cover frame Glass cushion Sight glass Gasket Pipe sockets Base frame The level indicator type 410 serves as a liquid indicator in the bypass for reliable level control on boilers and tanks. The indicator features a square frame with two end face Welding ends of Ø 20 mm. The fitting is equipped with a sight glass made of high-quality borosilicate glass according to DIN 7081. This is securely encased between gaskets and tightly screwed to ensure permanent tightness and high pressure resistance. Standardly, the sight glass type 410 is made of stainless steel 1.4571 (316Ti) – a material characterized by high corrosion resistance and durability. On request, the design is also available in many other materials, suitable for specific requirements and applications. The sealing of the fitting is done with flat gaskets tailored to your needs from an extensive range of materials. This offers not only the commonly used fiber gaskets but also more sophisticated materials such as PTFE (Teflon®), novaphit® MST-XP, and KlingerSil® C4400. Important notice: Reflective sight glasses cannot be combined with mica discs and coatings, as the protective mica layer prevents the necessary light refraction for reflection. Cross-sectiondrawing Dimensions BL V Concealed view h kg 140 79 0 25 3.4 170 124 0 25 4.0 220 174 0 25 5.0 250 204 0 25 5.7 300 264 0 25 6.7 310 264 0 25 7.0 350 304 0 25 7.8 370 324 0 25 8.2 400 354 0 25 8.9 500 454 1x46 25 11.4 600 564 1x46 25 13.4 620 574 1x46 25 13.9 700 654 1x46 25 15.7 740 694 1x46 25 16.5 800 754 1x46 25 17.8 930 884 2x46 25 20.9 1000 954 3x46 25 22.8

  Type A Type B Type H [bar] [°C] [bar] [°C] [bar] [°C] For soft environment,  not affecting aggressive on the glass ie. oils, hydrocarbons, etc. 400 120 265 120 300 120 150 400 180 400 200 400 0 - 10 430 0 - 10 430 0 - 10 430 For aggressive environment acting on the glass, eg. saturated steam, hot water, alkalis 35 243 35 243 42 253     Dimensions: Size TYPE A TYPE B TYPE H L W H L W H L W H 0 95 30 17 95 34 17 - - - I 115 30 17 115 34 17 115 34 22 II 140 30 17 140 34 17 140 34 22 III 165 30 17 165 34 17 165 34 22 IV 190 30 17 190 34 17 190 34 22 V 220 30 17 220 34 17 220 34 22 VI 250 30 17 250 34 17 250 34 22 VII 280 30 17 280 34 17 280 34 22 VIII 320 30 17 320 34 17 320 34 22 IX 340 30 17 340 34 17 340 34 22 X - - - 370 34 17 - - -   Reflex level gauge glasses offered by us are made by a recognized, global companies like Klinger, Maxos, Spectraglass of high-quality borosilicate("extra hard") or aluminosilicate glasses. Glass in the production process is subjected to a polishing and toughening. This results in products characterized by high mechanical strength and high resistance to alkalis, acids and condensates. In the production process is conducted constant and precise control of transparency and the dimensions of manufactured glass. Reflex gauge glasses  are used to read the liquid level directly or with the use of CCTV (industrial television). In this type of glass on the chamber side (medium side) are imprinted longitudinal grooves (3 or 4), which walls are angled to each other at an angle of 90˚. Squeezing process causes the formation of grooves. On the surface of the grooves creates extremely smooth and hard glass layer, very resistant to the environment. With the grooving increases the angle of refraction which makes the visibility of the liquid level is much better than when using smooth glass. For reflective glass does not apply mica shields. Reflex glasses may be used in pressure up to 35 bar. In this area are sufficiently resistant to the environment. The reading is clear and contrast. In the case of factors other than steam reflex glasses may be used up to 400 bar or 400˚C. Depending on the width and thickness there are three basic types of transparent level gauge glasses: type A - width 30 mm, thickness 17 mm type B - width 34 mm, thickness 17 mm type H - width 34 mm, thickness 22 mm In addition, the occasionally encountered also: Type C - width of 20 mm, thickness 12 mm Type D - width 25 mm, thickness 15 mm Reflex level gauge glasses are supplied in sets with gaskets or separately. We offer transparent glass meet the following standards: ÖNORM M 7354 (Austrian standard) DIN 7081 (German standard) JIS B 8211 (Japanese standard) ÖMV-Spez. H 2009 (factory standard of the Austrian petrochemical concern ÖMV-AG, Vienna) MIL-G-16356 D (regulations the US Navy) Esso Eng. Spec. 123 (Esso Research and Engineering Co. - New Jersey) S.O.D. Spec. 123 (Standard Oil Development Company - New Jersey) BS 3463 (British Standard) Note: transparent level gauge glasses are supplied in sets with gaskets or separately. If you can not find the size - please contact us.   While every attempt has been made to verify the source of the information, no responsibility is accepted for accuracy of data.

    Type A Type B Type H Type TA 28 3) [bar] [°C] [bar] [°C] [bar] [°C] [bar] [°C] For soft environment,  not affecting aggressive on the glass ie. oils, hydrocarbons, etc. 240 120 290 120 340 120 - - 160 400 800 400 230 400 - - 0 - 10 430 0 - 10 430 0 - 10 430 - - For aggressive environment acting on the glass, eg. saturated steam, hot water, alkalis 35 1) 243 35 1) 243 42 1) 253 120 2) 324 70 300 85 300 85 300 180 356   1) For steam pressures above 35 bar is recommended to use mica shields.2) For steam pressures above 120 bar can be used only glasses TA-28-I.3) Glass type TA 28 can be used only with mica shields.   Dimensions:   Size TYPE A TYPE B TYPE H TYPE TA 28 L W H L W H L W H L W H I 115 30 17 115 34 17 - - - 113 27,6 16,8 II 140 30 17 140 34 17 140 34 22 - - - III 165 30 17 165 34 17 165 34 22 163 27,6 16,8 IV 190 30 17 190 34 17 190 34 22 188 27,6 16,8 V 220 30 17 220 34 17 220 34 22 218 27,6 16,8 VI 250 30 17 250 34 17 250 34 22 248 27,6 16,8 VII 280 30 17 280 34 17 280 34 22 278 27,6 16,8 VIII 320 30 17 320 34 17 320 34 22 318 27,6 16,8 IX 340 30 17 340 34 17 340 34 22 338 27,6 16,8 X - - - 370 34 17 - - - - - -   Note: transparent level gauge glasses are supplied in sets with gaskets and mica shields or separately. If you can not find the size - please contact us.   While every attempt has been made to verify the source of the information, no responsibility is accepted for accuracy of data. Transparent level gauge glasses offered by us are made by a recognized, global companies like Klinger, Maxos, Spectraglass of high-quality borosilicate ("extra hard") or aluminosilicateglasses. Glass in the production process is subjected to a two-sided polishing and toughening. This results in products characterized by high mechanical strength and high resistance to alkalis, acids and condensates. In the production process is conducted constant and precise control of transparency and the dimensions of manufactured glass. Transparent (smooth) level gauge glasses  are used to read the liquid level directly or with the use of CCTV (industrial television). They can be (type TA 28) used up to 180 bar / 356°C for aggressive environments affecting (interacting) the glass (eg. saturated steam, hot water, alkalis) and up to 300 bar / 400°C for soft environments. Glass must be protected from the medium side through the mica shields. They are especially recommended for environments contaminated, viscous and highly corrosive. Depending on the width and thickness there are four basic types of transparent level gauge glasses: type A - width 30 mm, thickness 17 mm type B - width 34 mm, thickness 17 mm type H - width 34 mm, thickness 22 mm type TA 28 - width of 27.6 mm, 16.8 mm In addition, the occasionally encountered also: Type C - width of 20 mm, thickness 12 mm Type D - width 25 mm, thickness 15 mm Transparent level gauge glasses are  supplied in sets with gaskets and mica shields or separately. The set, packaged in a common box, consists of: box set of washers  gasket mica shield for the media side mica shield for the place of observation(with a hole Φ ca. 1 mm) installation guide   In all TA-28 sets, soft washers and protective washers are made from graphite foil. In set TA-28-I gasket is made from graphite laminate KlingerGraphite type SLS (see desc. here), but for sets TA-28-III .. TA-28-IX KlingerGraphite type PSM is used (see desc. here). In sets type A, B, H all washers are made from KlingerSil plate type C-4430 (see desc. here), but gaskets are made from graphite laminate KlingerGraphite type SLS (see desc. here).   It is good to know, that the role of the mica shield installed on the outside (ie, on the side of the viewer) is to reduce the thermal shock to which gauge glass is exposed, working on the one hand, in an environment of high temperature (steam, hot water), and on the other, with a low (room) temperature environment. Outer mica shield helps to a longer faultless operation of the set. The hole made in the shield, protects against moisture staying between the glass and mica while mounting assembly and relieves pressure above and below the shield during normal operation. box: set of elements: installation guide:   We offer transparent glass meet the following standards: ÖNORM M 7354 (Austrian standard) DIN 7081 (German standard) JIS B 8211 (Japanese standard) ÖMV-Spez. H 2009 (Austrian factory standard of the petrochemical concern ÖMV-AG, Vienna) MIL-G-16356 D (regulations the US Navy) Esso Eng. Spec. 123 (Esso Research and Engineering Co. - New Jersey) S.O.D. Spec. 123 (Standard Oil Development Company - New Jersey) BS 3463 (British Standard) We also provide glass unusual: manufactured according to individual customer technical requirements, custom sizes and custom shapes.

Screws Cover frame Glass cushion Sight glass Gasket Base frame The ACI Flow sight glass type 334 is a lightweight design that offers a significantly enlarged viewing window compared to our type 330 at a relatively low working pressure of up to 3 barg. This construction allows the type 334 to combine the functions of our round sight glasses, such as type 318, and our level indicators for tank wall mounting Type 330. The fitting is equipped with a sight glass plate made of high-quality borosilicate glass similar to DIN 7081 (or according to customer specifications). It is securely inserted between seals and tightly screwed to ensure long-term tightness and high pressure resistance. Standardly, the Flow sight glass type 334 is made from stainless steel 1.4571 (316Ti) – a material characterized by high corrosion resistance and durability. Upon request, the version is also available in many other materials, tailored to specific requirements and applications. The sealing of the fitting is done with flat seals tailored to your needs from an extensive range of materials. This offers, in addition to the common fiber seals, more advanced materials such as PTFE (Teflon®), NBR, novaphit® MST-XP, KlingerSil® C4400, and many other branded seals. If the maximum operating temperature of borosilicate glass DIN 7081 does not meet your requirements, or if process conditions pose a problem even for the highly resistant borosilicate glass, a mica protection disc specially adapted for the fitting provides additional protection against temperature and steam. FEP or Halar® coatings provide additional protection for borosilicate glass against aggressive chemicals or alkalis. Cross-sectiondrawing Dimensions BL [mm] 270 340 410 480 550 620 690 760 SL [mm] 200 270 340 410 480 550 620 690 Weight [kg] 7,4 9,0 10,6 12,2 13,8 15,4 17,0 18,6
